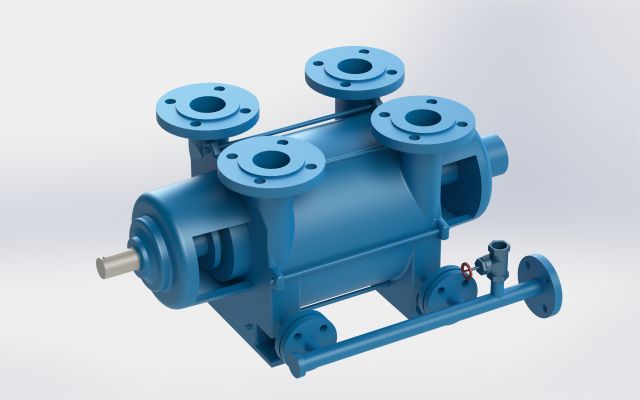

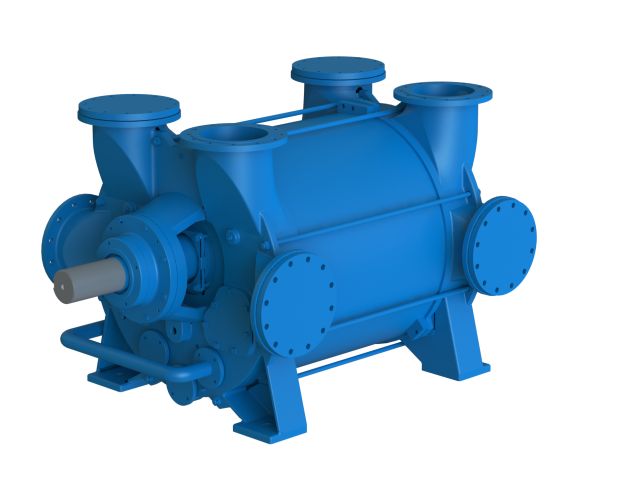

The ALC liquid ring vacuum pumps guarantee capacity between 8500 and 40000 mc/h.
The ALC pumps are built to suction from one or more vacuum sectors, to achieve one or two degrees of vacuum which work at 50 % of the total capacity and which can be totally indipendent and differentiated. They are greatly used in the paper, sacchariferous, minerary, cement, chemical, regenerated leather, petrochemical industries and in filtration plants.


These are one stage liquid ring vacuum pumps, designed to allow a very limited energetic consumption against continuous functioning in harsh conditions.
They allow flexibility in installation thanks to 8 openings, 4 in suction and 4 in emission (4 vertical and 4 horizontal). The reliability and the functioning efficiency with low energy consumption, are guaranteed by the use of flat distribution disks and discharge diffusors with valves which inhibit overpressure even in extremely harsh working conditions.
The ALC pumps can be built in standard or special version for high vacuum.
The standard building material is cast iron. Stainless steel RV 316 versions and others covered in composite ceramic RC are available.
The seals are guaranteed by teflonated stuffing box seals in the standard version; mechanical seals are mounted if requested.
