USE

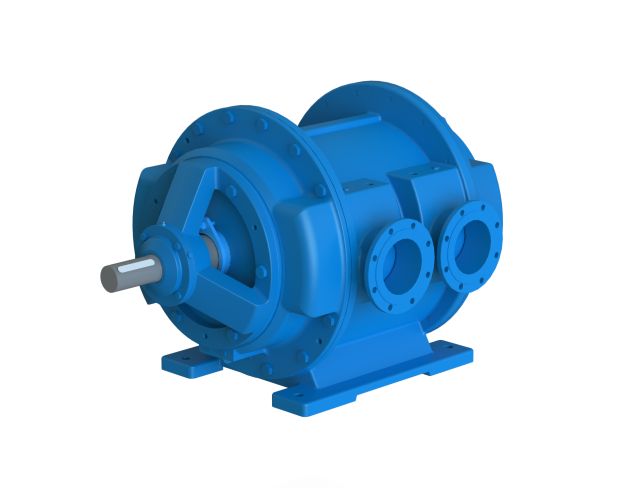

The ALBV / 2000 liquid ring vacuum pumps guarantee capacity between 2000 and 7500 mc/h.The ALBV/2000 pumps are built with two vertical suction openings, which allow, to have two pumps in one, each of which works with a capacity of 50% of the total value and with totally differentiated and indipendent vacuums.These are greatly used in the paper, petrochemical and regenerated leather industry.

CONSTRUCTION

These are one stage liquid ring vacuum pumps, studied to allow very limited energetic consumption against continuous functioning in harsh conditions.Studied to be installed
in reduced spaces. Their reliability and functioning efficiency, with low energy consumption, are guaranteed by the use of distributors with wide passages. The ALBV 2000 pumps can be built in standard or special version (ALBV 2000-2) for high vacuum.
The standard building material is cast iron. Stainless steel RV 316 versions and others covered in composite ceramic RC are available.
The seals are guaranteed by teflonated stuffing box seals in the standard version; mechanical seals are mounted if requested.
